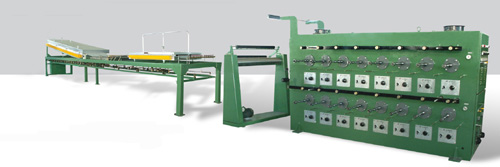

tubular annealing tin-plating machine　DAV-32H-4.5　DAV-40H-4.5　DAV-40H-6.8　DAV-40H-8　DAV-40H-6.8-2

tubular annealing tin-plating series (single/double layer take-up models)

model

DAV-32H-4.5
DAV-40H-4.5
DAV-40H-6.8
DAV-40H-8

DAV-40H-6.8-2

max speed of annealing

300mpm/max

300mpm/max
300mpm/max
300mpm/max

300mpm/max

max diameter of annealing

φ0.1~φ0.32mm copper wire

φ0.1~φ0.5mm copper sheathed wire

φ0.1~φ0.32mm
copper wire

φ0.1~φ0.5mm
copper sheathed wire
φ0.1~φ0.68mm copper wire

φ0.1~φ0.8mm
copper wire

φ0.1~φ0.4mm
copper sheathed wire

φ0.1~φ0.68mm
copper wire

max number of wires annealed

32
40
40
40

40

max temperature of annealing furnace

500℃
500℃
700℃
800℃

700℃
length of annealed zone
4.5m
4.5m
6.8m
8m
6.8m
annealing temperature control zone
two zone
two zone
three zone
four zone
independent control on both sides with three zones on each side

installed capacity

45KW
45KW
55KW
65KW

65KW
