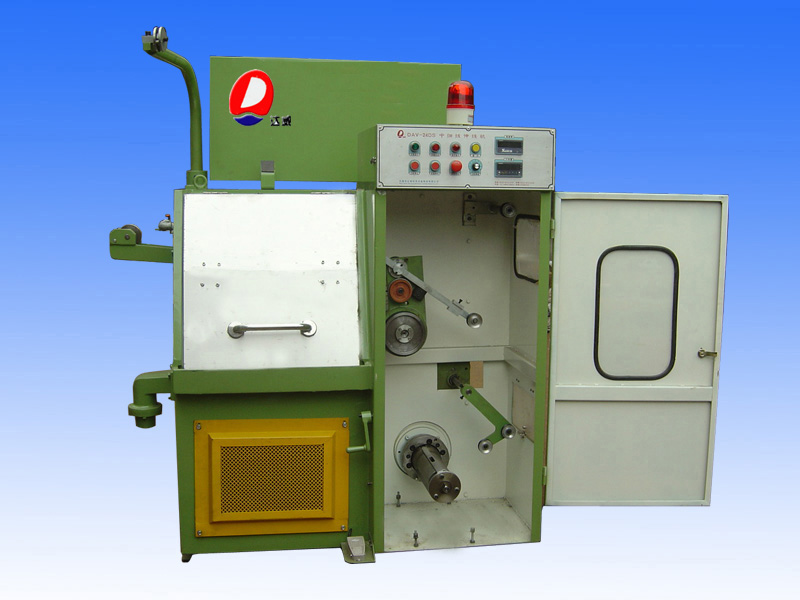

fine wire drawing machine |
sizes |
DAV-22D |
DAV-24D |
sizes |
2500mpm/max |
2500mpm/max |
max number of drawing dies |
22 |
24 |
inlet diameter or wire(mm) |
φ1.2mm coppe wire |
φ1.2mm coppe wire |
finished diameter of wire (mm) |
φ0.08-φ0.45mm/Max
copp ewire
|
φ0.08-φ0.45mm/Max coppe wire
φ0.1-φ0.5mm/Max copper sheathed aluminum wire
|
| max diameter of cone pulley(mm) |
φ223 |
φ223 |
| spray material of cone pulley |
spray welding tungsten carbide |
spray welding tungsten carbide |
size of coiling take-up bobbin (mm) |
φ 330mm/max |
φ 330mm/max |
main motor power (DC/AC/KW) |
11 KW |
11KW |
motor of coiling take-up bobbin power(DC/AC/KW) |
3.7KW |
3.7KW |
drive mode |
high tension flat belt |
high tension flat belt |
mechanical draft |
15% |
13.5% |
| sizing draft |
8% |
%6 |
| lubrication oil cooling method |
sprinkle |
sprinkle |
| mechanical structure |
integral cast form |
integral cast form |
